Produt overview

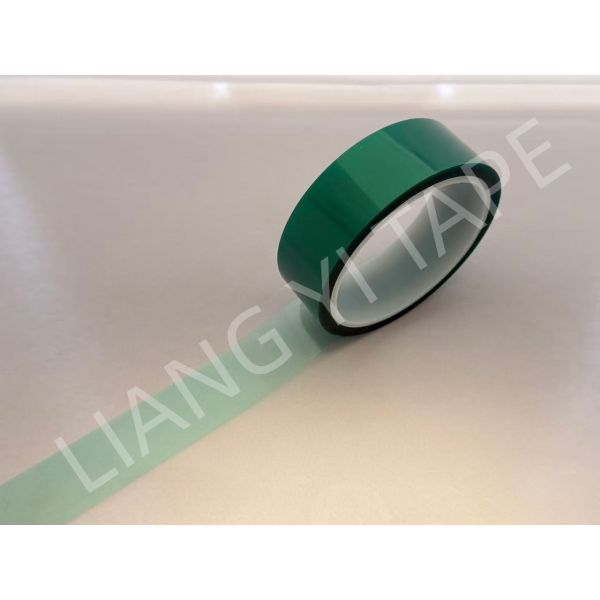

Green silicone tape is made from green PET polyester film coated with silicone, offering excellent high-temperature resistance and superior insulation properties.
Key Features
- 155℃ Continuous Temperature Resistance
- Clean, Residue-Free Removal
- Superior Electrical Insulation
- Excellent Chemical Resistance
- Conformable with High Elongation
Primary Applications
- PCB Wave Soldering Masking
- Solder Dip & Selective Soldering Protection
- Conformal Coating Maskin
- Powder Coating Curing Ovens
- Electroplating & Anodizing Masking
- Automotive Paint Baking
- Temporary Identification & Color Coding
Technical Data Sheet
| Total Thickness |
mm |
0.05 ± 0.005 |
| Backing Thickness |
mm |
0.038 |
| Adhesive Type |
– |
Silicone |
| Backing Material |
– |
PET Film |
| Color |
– |
Green |
| Elongation at Break |
% |
> 40 |
| Peel Adhesion |
g/25mm |
> 500 |
| Long-Term Temp Resistance |
℃ |
155 |
| Dielectric Breakdown Voltage |
kV |
> 5.0 |
| Chemical Resistance |
– |
Excellent |
| Adhesive Residue |
– |
None |
| Recommended Storage Temp |
℃ |
23 |
| Recommended Storage Humidity |
% RH |
65 |
| Shelf Life |
Months |
6 |
Why Choose Our Tape
1.Factory Direct: Guaranteed quality from the source.
2.Competitive Pricing: Reasonable prices as a direct manufacturer.
3.Reliable Service: Timely delivery & 24-hour issue response.
4.UL and SGS certification; confirm to ROHS ,REACH;sumitomo insulation system; cosmolink insulation system.
FAQ
Q: Why should I choose green PET tape instead of transparent or amber?
A: The green color provides superior visual contrast against PCBs and metal parts. This allows production line operators to quickly verify proper mask placement and reduces the risk of missed or misaligned masking, improving overall throughput and quality control.
Q: Is this tape suitable for lead-free wave soldering temperatures?
A: Yes. The tape is rated for continuous use at 155℃ , which aligns with the preheat and solder wave temperatures typical of lead-free assembly processes. The silicone adhesive maintains its bond without charring or excessive shrinkage.
Q: Can this tape be used in automated tape dispensing equipment?
A: Yes. The consistent thickness and controlled unwind properties make it compatible with most automatic tape dispensers and laminating systems used in high-volume PCB assembly.
Q: What is the recommended storage condition and shelf life?
A: Store in original packaging at 23℃ (73℉) and 65% relative humidity. Under these conditions, the tape maintains optimal performance for 6 months from date of shipment.
Q: Can this tape withstand flux and cleaning solvents?
A: Yes. The PET backing and silicone adhesive exhibit excellent resistance to common PCB fluxes, isopropyl alcohol, and mild solvent cleaners used in electronics manufacturing.
